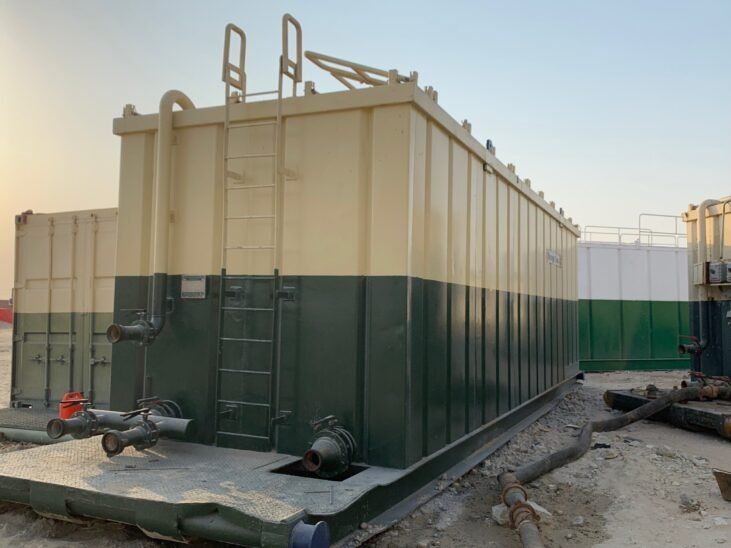

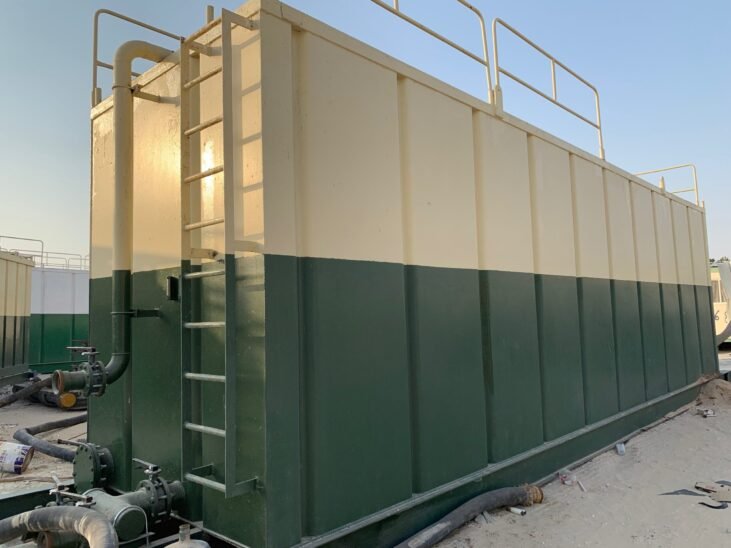

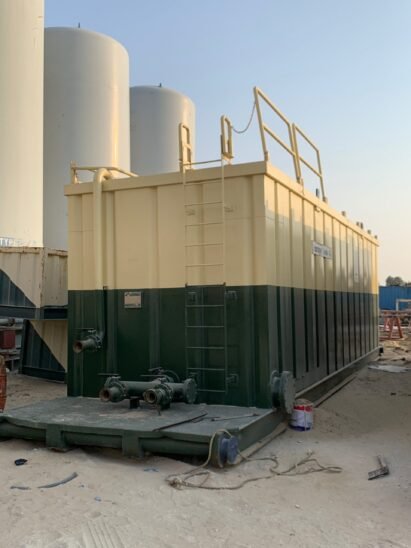

500 BBL Rectangle Storage Tank
Product Type Storage Skid Mounted Tank
Capacity 500 BBL
OPM: Water/ Mud / Brine Solution
Single compartment without baffle
Internal Dimensions:
- Length: 10700 mm
- Width: 2700 mm
- Height: 2820 mm(Average height – Slope Floor)
Skid Dimensions:
- Overall Length: 12000mm
- Overall Width: 2720mm
- Overall Height: 3350 (When handrails folded)
Actual volume=81469 liters or 512BBL.
Mechanical Piping One (1) 4″ Filling Line: One (1) 4″ butterfly valve Class-150, one (1) 4″ hammer union FIG.206(F) Sch:40. Four (4) 3″ Circulation Lines: Branched from 4” filling line, ends with 3”x1½” reducers.
One (1) 6″ Discharge Line Manifold: 16” sump arrangement, Three (3) 6″ butterfly valve Class-150, two (2) 4″ hammer union FIG.206(F) Sch:40. Roof Hatches 1no, 600x600mm.
