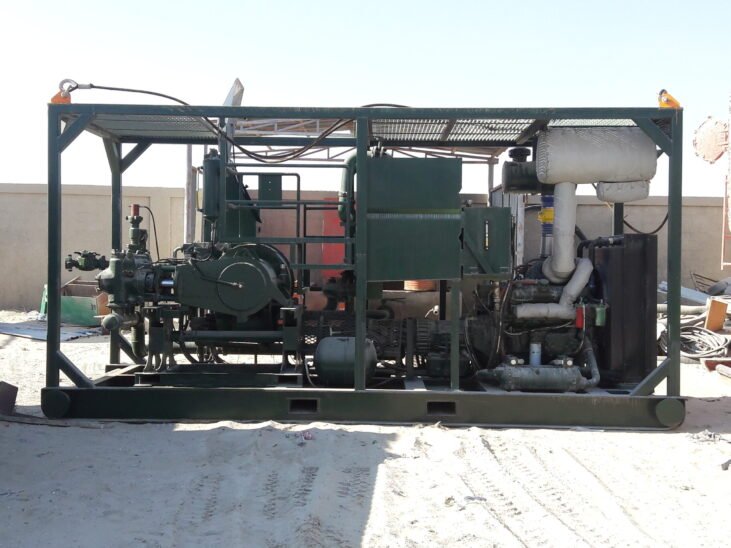

HT 400 TRIPLEX PUMP Skid Mounted Unit 4-1/2” & 3-3/8
One heavy duty oilfield design skid. Skid includes one 100 Gallon diesel tank with clean out provision, HT-400 Triplex Plunger pumps rated at 450HP with 4-1/2” & 3-3/8” plunger sizes and 11,500psi working pressure at 2100 RPM.
Single acting triplex pump.
Engine:
- Serviced Detroit 8-92 engine, Rated 450HP @ 2100rpm
- 50 degree heavy duty desert radiators installed c/w suction fan and adjustable lateral anti vibration support
- Exhaust and muffler system complete with spark arrestors, elbows and expansions bellow.
- Exhaust mufflers and piping are shielded with heat blankets.
Allison 750 DRD Transmission
Halliburton HT-400 Triplex Plunger:
- Rated Max. Brake Horsepower : 450BHP
- Maximum Rod Load: 100,000# (43,360 kg)
- No. of Plungers 3
Stroke length: 8”
Plunger Size: 4-1/2” & 3-3/8”
Control Panel
- One control panel frame and body to be made from mild steel, face plate to be made from stainless steel with etched labelling.
- One Wagner Analog Pressure Gauges 15,000psi and Contrec Rate Totalizer to read pressure and flow.
- pipe line suction 6” with butterfly valve.Suction 4” Fig 206 connection & discharge Line 2” 1502.(only in Unit 4-1/2”)
- Double life centrifugal Pump 5x6x14 size with complete hydraulic system.
- Heat exchanger cooler for the engine & transmission.
- Displacement tank 10 Barrel , pipe line suction 6” with butterfly valve.(only in Unit 3-3/8”)
PRV (safety Relief valve) calibrated in 6500 PSI
