MBF is A trusted name in oilfield equipment manufacturing in the local and regional markets.
Coil Tubing Unit

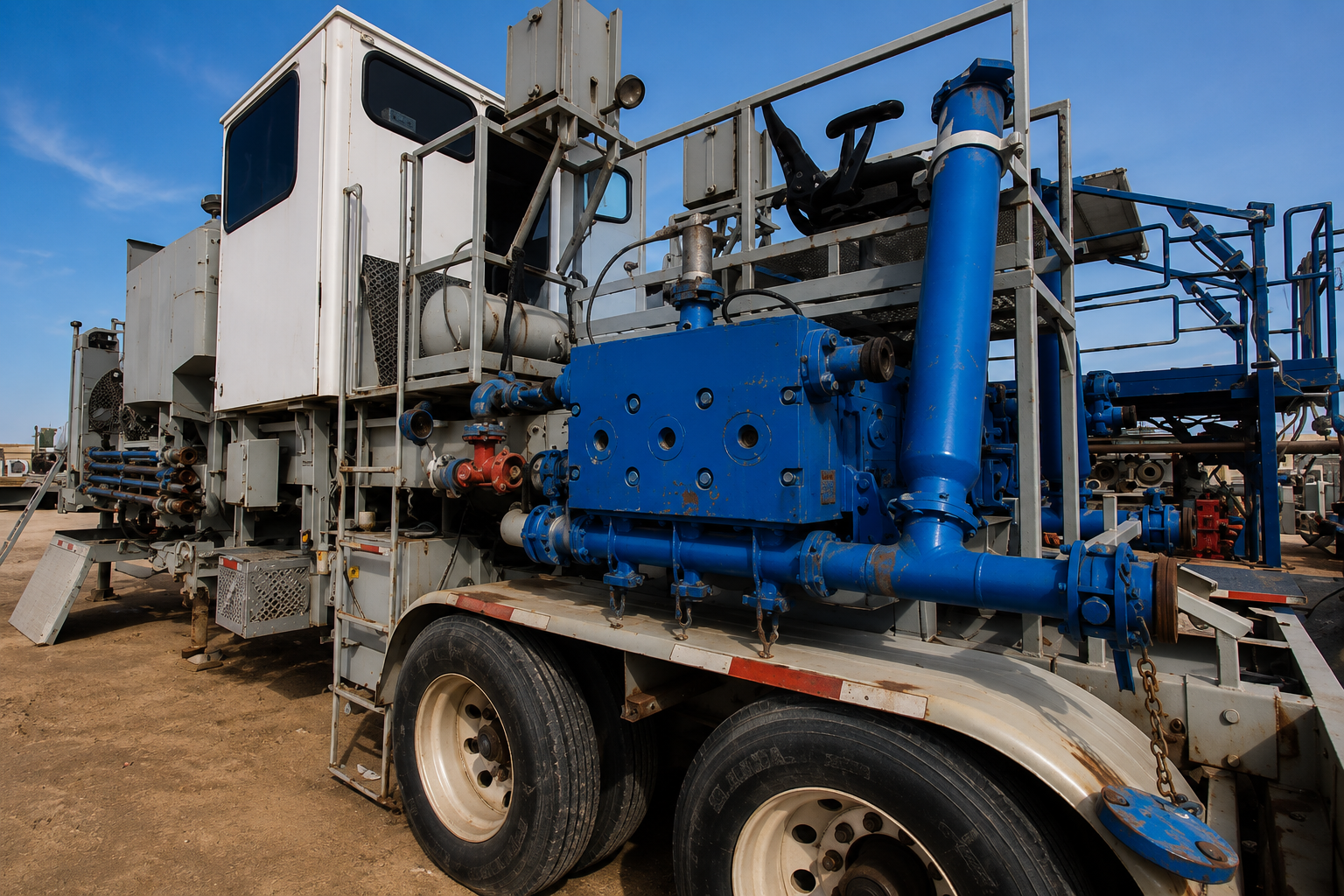

Twin Pump
- Skid & Trailer mounted twin pumping unit
- Skid: L x W x H : 8.4m x 2.6m x 3.0m
- Deck engine: 2 x Detroit Diesel8v-71 305bhp.
- Transmission: Allison CLBT-754
- Control panel data acquisition equipment, recording system.
- Triplex pump: 2 x Gardner Denver PG (3 3/4″ 10,000psi and 4.5″ 5,000psi).
- Centrifugal pump: 2 x Garden Denver 5″x4″.
- Fluid and air tank: hydraulic, diesel and air tanks.
- Displacement tank: One 20BBL divided into 2 compartments
- High and low pressure piping.

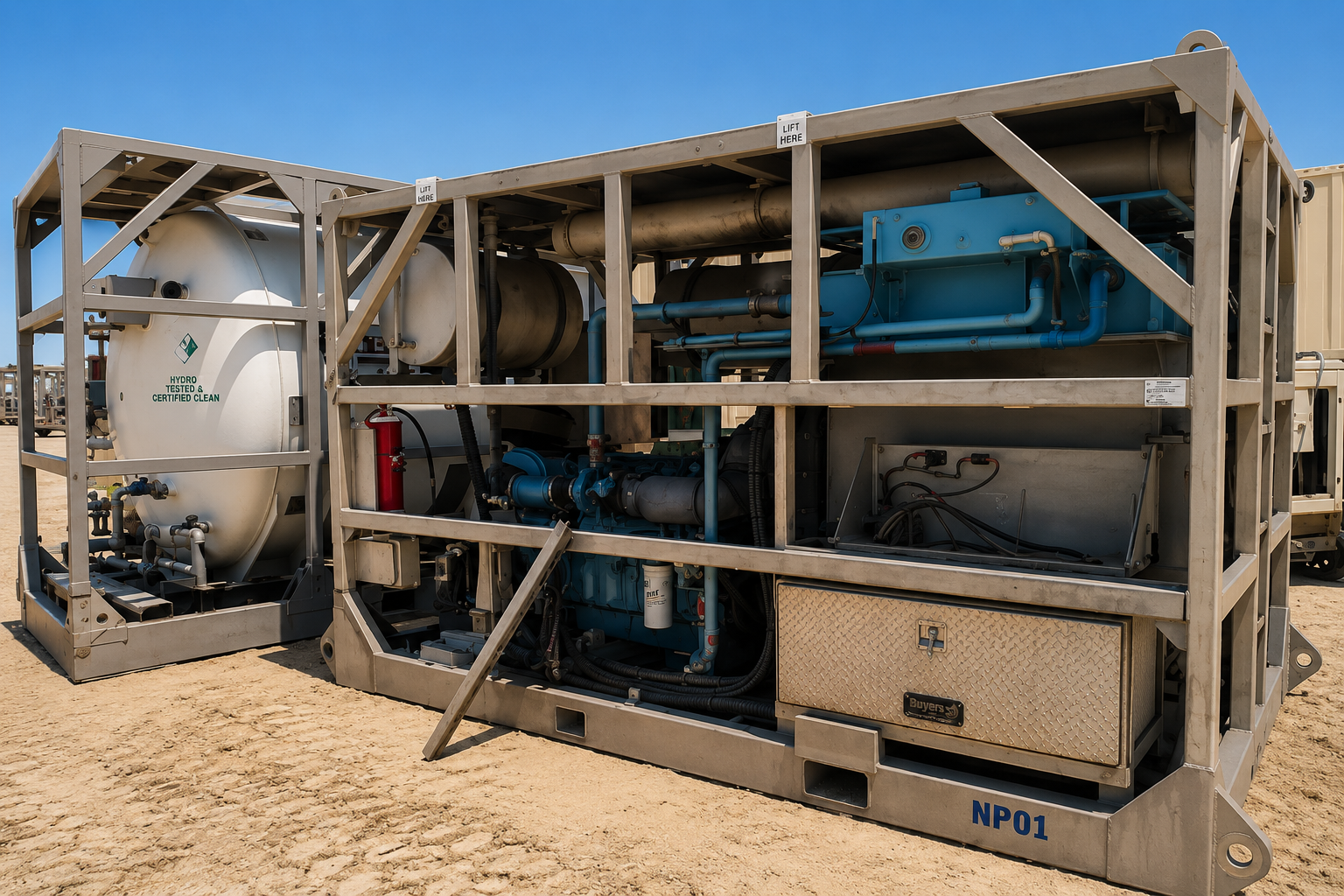

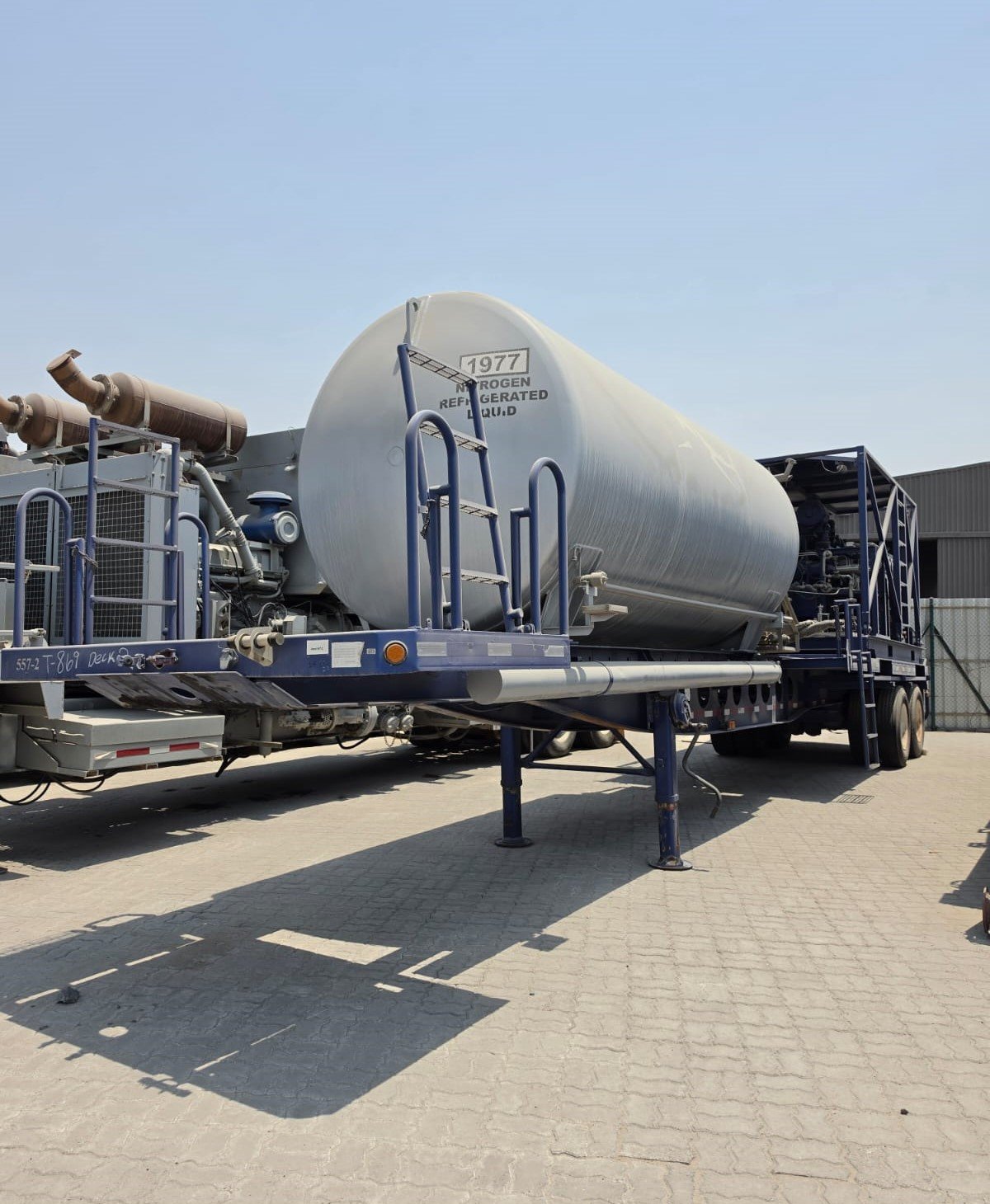

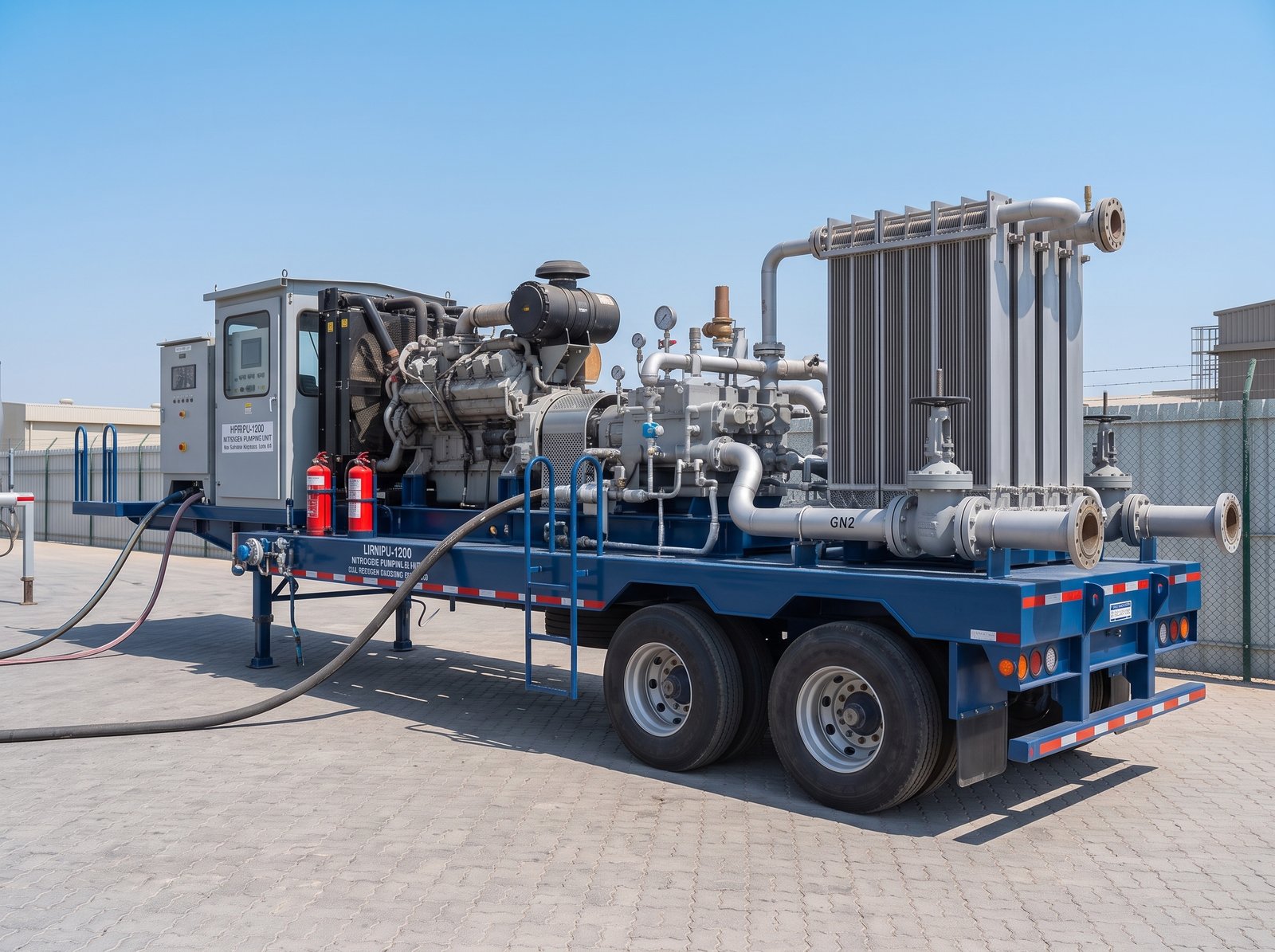

Nitrogen Pump / Converter Unit
High-performance nitrogen pump/converter units designed for well stimulation, pressure testing, nitrogen lifting, and other oilfield applications. The units are available in various configurations to meet different flow and pressure requirements.
Key Specifications
- Nitrogen Gas Output: Up to 180,000 SCF/hr
- Maximum Working Pressure: Up to 15,000 PSI
- Standard Pressure Ratings: 10,000 PSI (690 bar) and 14,500 PSI (1,000 bar)
- Operating Temperature: 20°C (70°F)
- Vaporizer: PED-approved vaporizer pot
- Certification: Minimum equivalent to DNV 2.7-1
- Hazardous Area Certification: Zone II
- Additional Certification: Other certification options available upon request
- Configuration: Nitrogen Pump / Converter unit
The units are designed for reliable and efficient conversion of liquid nitrogen into high-pressure nitrogen gas, providing a high-capacity solution for demanding oilfield operations.
Safety Caravan Unit
local Manufacturing Facility for Customized Portacabin’s offers various sized Offices, Sleepers etc. fulfilling ADNOC requirements with Quality, Safety and Comfort.
These Portacabin’s are supplied to major ADNOC Service Companies in the Emirates supporting their various operations in the Rig and Well Sites. Our Portacabins are fully customizable for various purposes to fulfil Client’s requirement
- 40ft. Cabin, Two (2) Men Sleeper with Two (2) attached WC.
- 40ft. Cabin, Four (4) Men Sleeper with Two (2) attached WC.
- 40ft. Cabin, Eight (8) Men Sleeper with Two (2) attached WC.
- 40ft. Cabin, Customized Meeting Room Facility.
- 20ft. Cabin, Mosque Facility.
- 40ft. WC Facility.
- Custom Sized Security Cabin.
- Custom Sized Spooling Cabin.
Nitrogen Pump
The product range includes Nitrogen Pump/Converter units with flow rates up to 180K scf/hr and pressures up to 15,000psi. All pumps are certified as a minimum equivalent to DNV 2.7-1 and Zone II, certification options also available.
This nitrogen pump unit outputs up to 180k scf/hr of nitrogen gas at temperatures of 20 deg C (70 deg F). Units can be provided rated to 10,000psi (690 bar) or 14,500psi (1000 bar) with a PED approved vaporizer pot.
